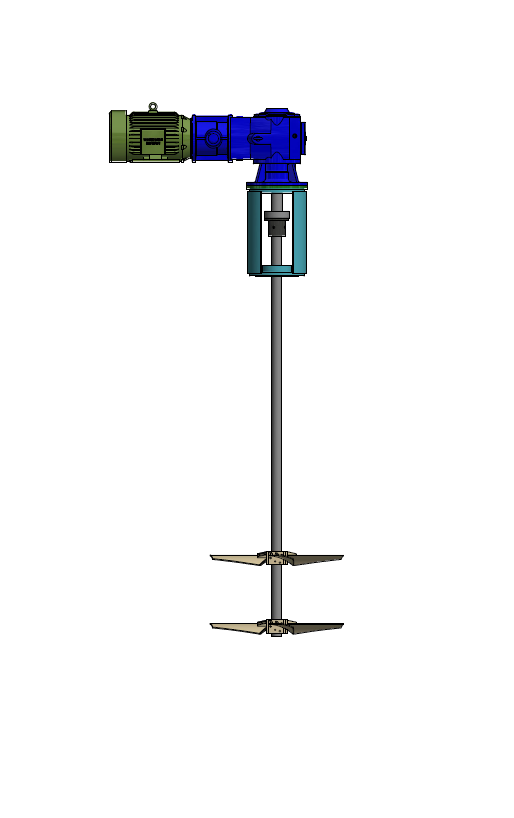

XCEL-200N to 600N Series mixers are engineered and manufactured specifically for the demanding operating parameters associated with difficult mixing applications.
XCEL-200N to 600N mixers feature custom gearboxes with helical/spiral bevel gear combinations. Large diameter output shafts accommodate the high bending moments and loads associated with these types of applications.
|HP Rating||Up to 1000 HP|
|Speed Range:||1 to 350 rpm|
|Motor:||NEMA foot or C-face, TEFC or XP|
|Gear Drive:||Helical and bevel gear configurations|
|Pumping Rates:||Up to 500,000 gpm|
|Impellor:||Hydrofoil for highest efficiency|
|Shaft:||UP to 50ft. long without a steady bearing|
|Mounting:||Baseplate or flange mount|
