Product Description

XCEL-15 to 24 Series mixers are ideal for a wide range of applications, where efficiency and dependability are key. The gearbox uses high efficiency helical gears and oversized bearings to handle long shafts with high overhung loads.

Parallel drive gearboxes provide a vertical mount with a minimal footprint. The use of oversized and spread output greased bearings result in an extended gearbox service life.

Typical mounting options include baseplate or flange.

Specifications

HP Rating Up to 200 HP
Speed Range: 1 to 400 rpm
Motor: NEMA C-face in TEFC,XP
Gear Drive: High efficiency helical
Pumping Rates: Up to 86,000 gpm
Impellor: Hydrofoil for highest efficiency
Shaft: Up to 50 feet long without a steady bearing
Mounting: Baseplate or flange mount

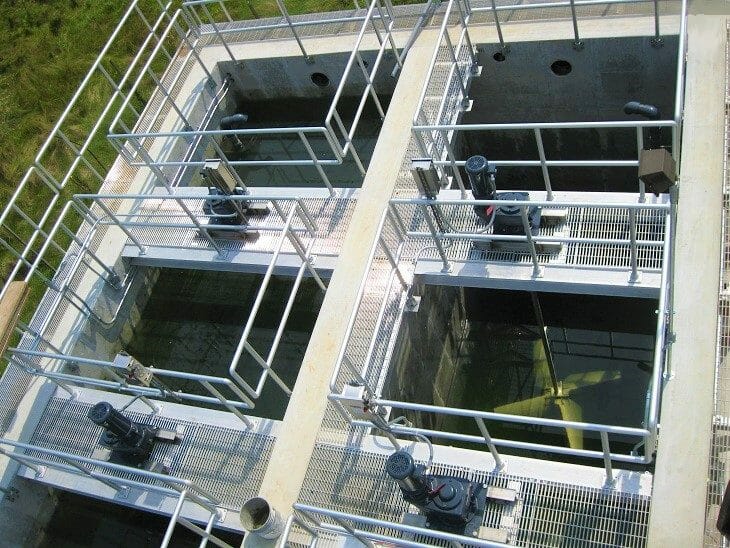

Product Images
