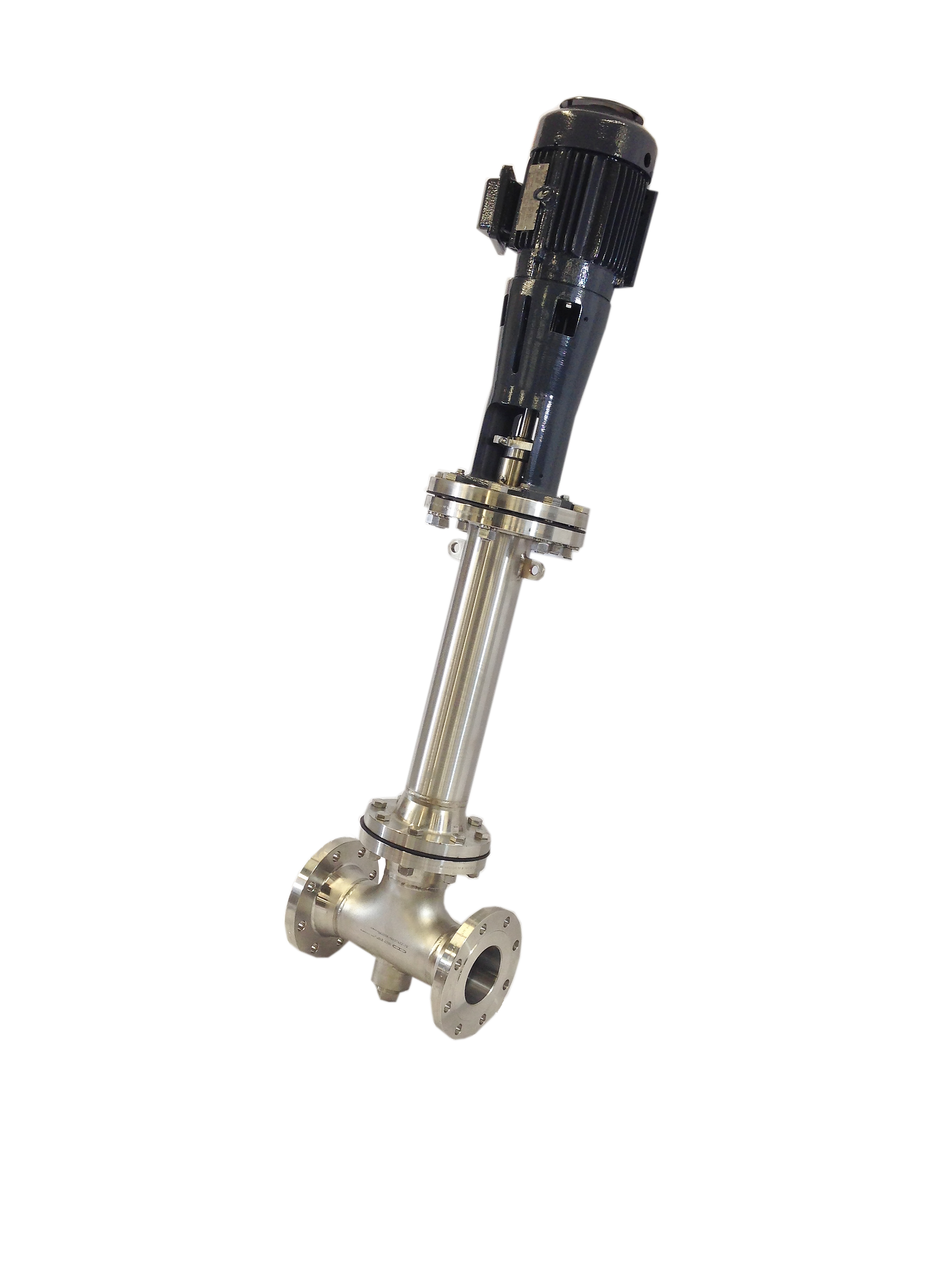

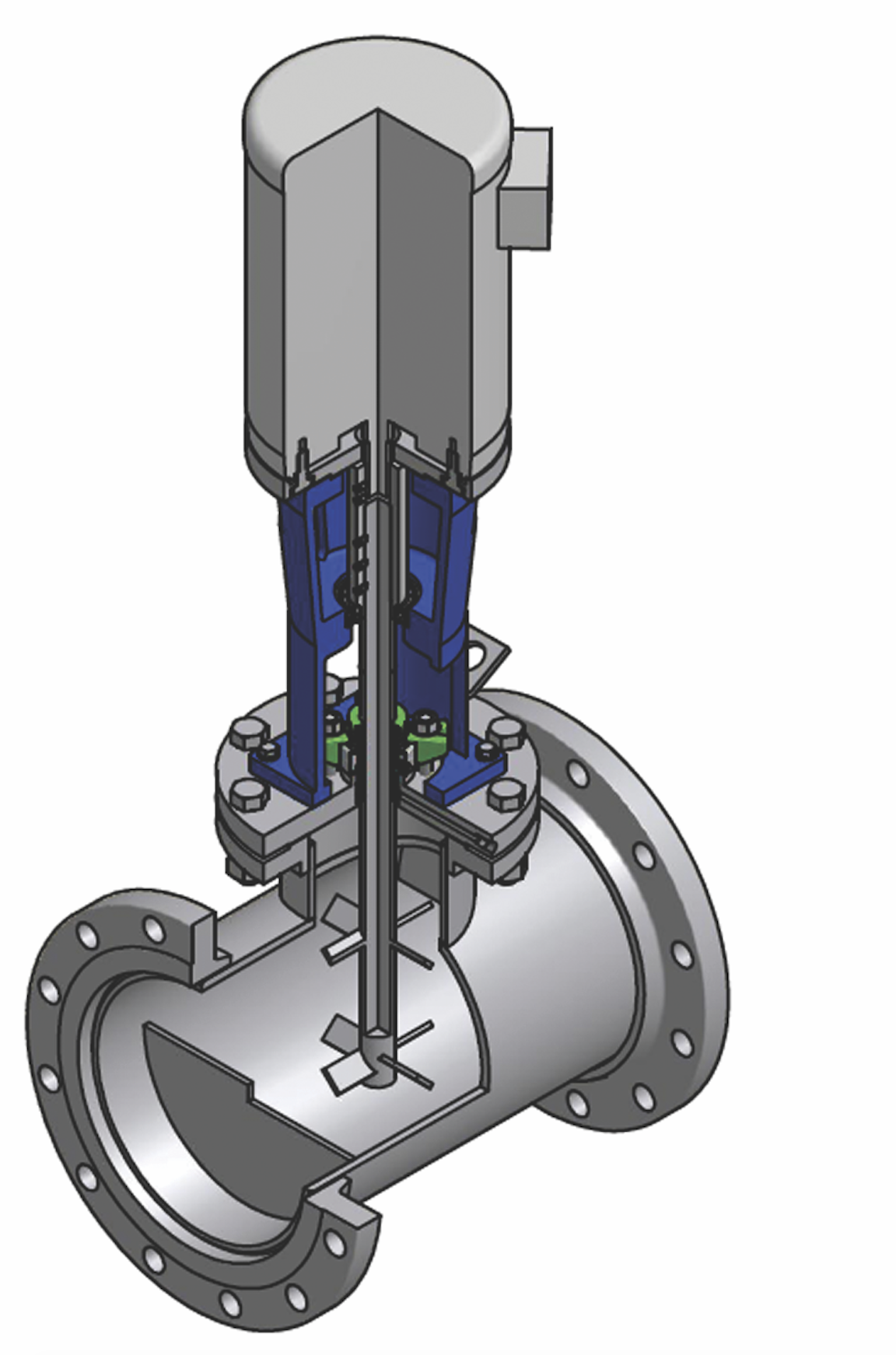

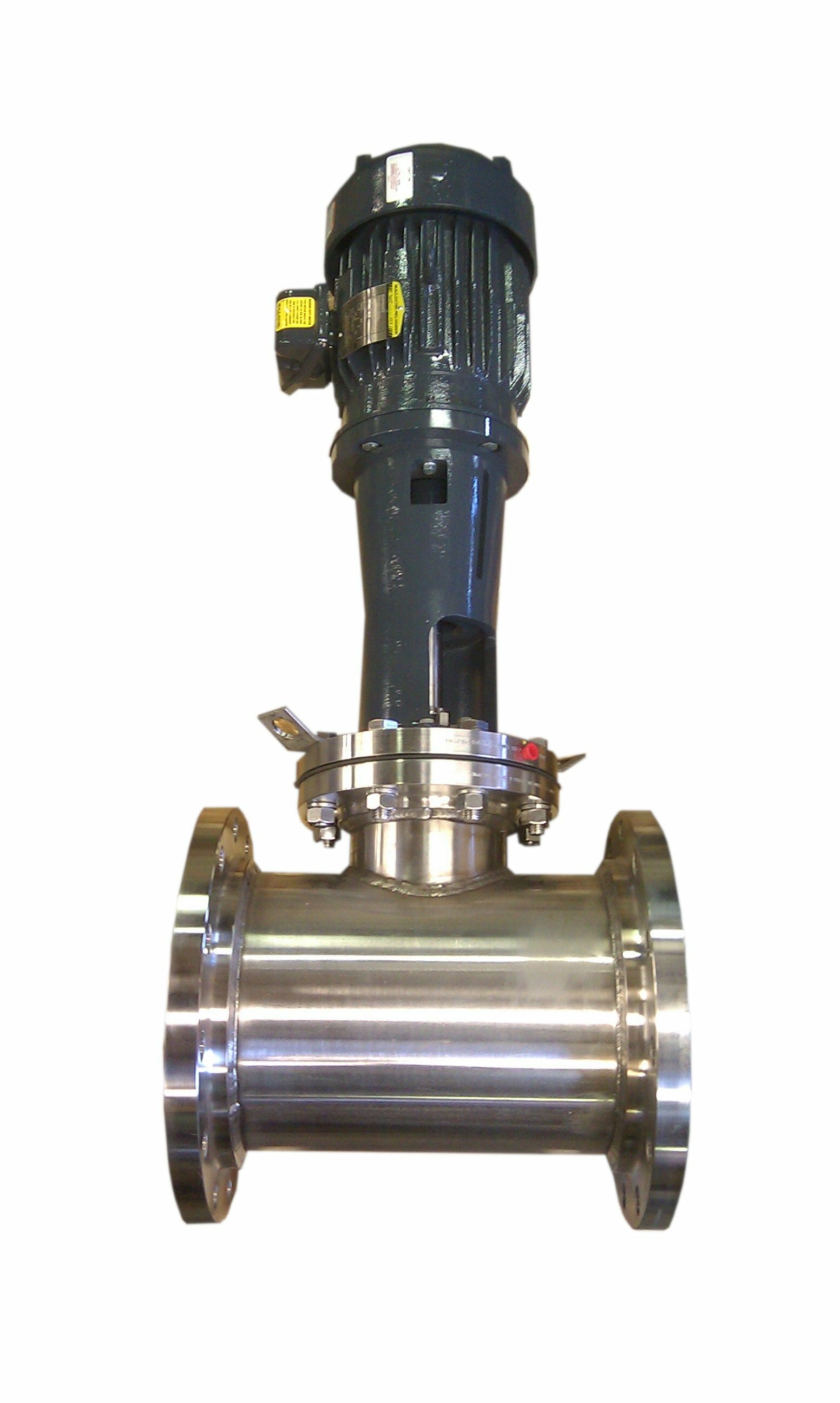

In a UET Mixers Pipeline Mixer, the fluids enter a high shear zone where they experience intense mixing. These mixers are designed for continuous processing, where the process requires more shear then a static mixer can provide.
Mechanical Pipeline Mixers can be used to blend miscible fluids or disperse immiscible fluids. Pipeline Mixers are available in a wide range of configurations and materials, and can be mounted at any angle to meet process requirements.
|HP Rating||Up to 20 HP|
|Line Size:||Up to 24” dia. Pipe housing|
|Mounting:||ANSI flanged ends|
|Speed Range:||350 rpm to 3600 rpm|
|Motor:||NEAM C-face, TEFC or XP|
|Impellor:||Axial or Radial|
|Viscosities:||Up to 10,000 cPs|
|Pressure:||Up to 300 psig|
