Yes, UET Mixers manufacture magnetic drive agitators!

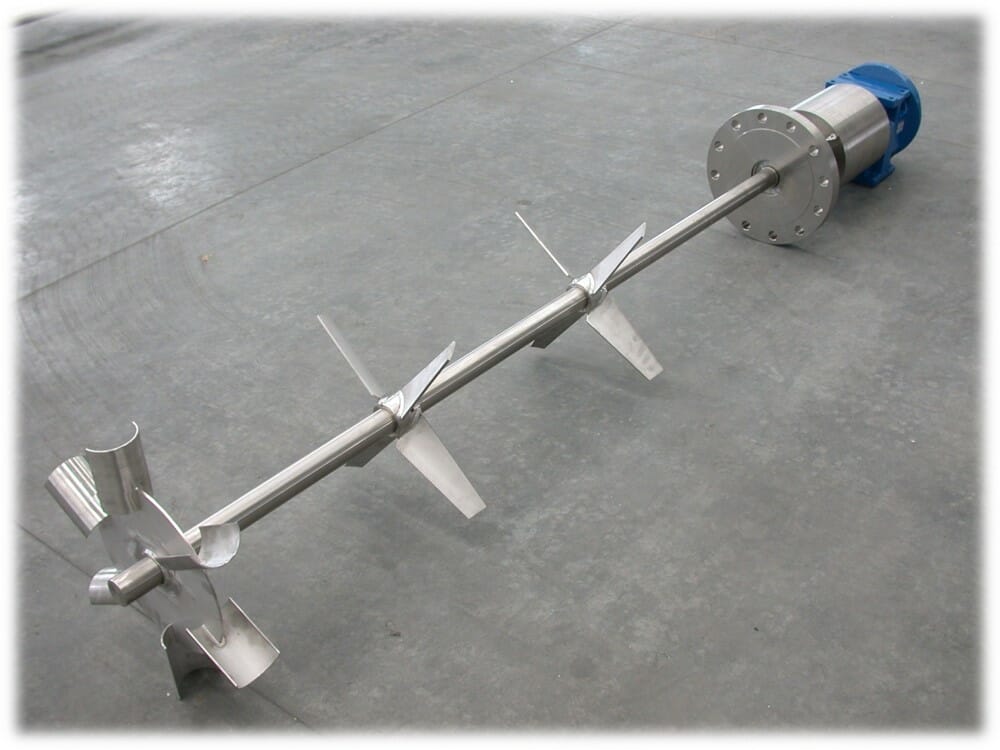

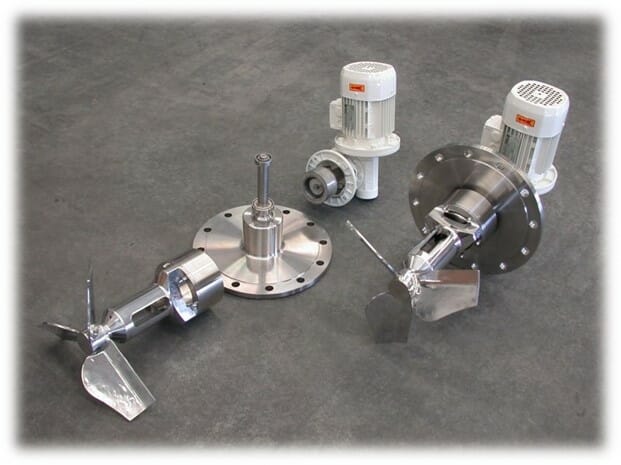

These specialty mixer can be mounted on the top, side, or bottom of a vessel. Mag drive mixers offer a seal-less, leak proof design that eliminates contamination and assures operator safety. There is no need for a mechanical seal or lubrication system.
Available options include, but are not limited to:
· Sanitary finish for wetted parts
· Rated temperature to 650 F
· Rated pressure to 3,000 psi
· Speed sensors, tachometers, and power monitors
|HP Rating||Up to 75 HP|
|Speed Range:||1 to 500 rpm|
|Motor:||NEMA C-face, TEFC or XP|
|Gear Drive:||Helical, Bevel, Worm|
|Pumping Rates:||Up to 200,000 gpm|
|Shaft:||UP to 96” long without a steady bearing|
|Mounting:||Flanged bearing stand, Dry running bearings, Magnetic seal-less coupling|
